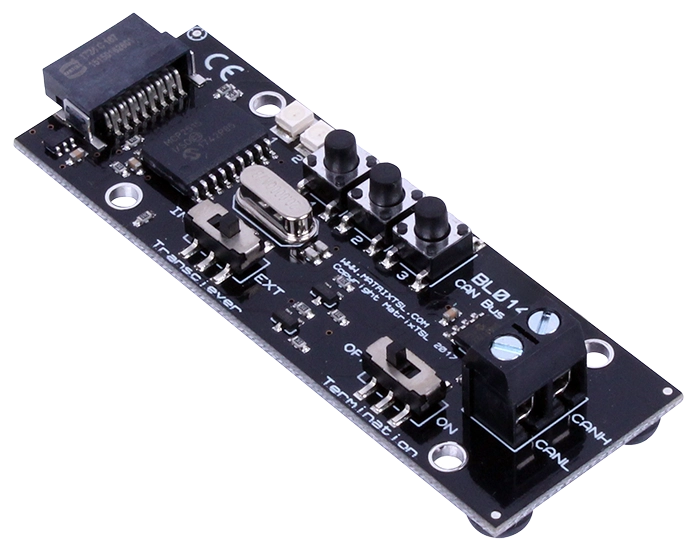

The E-Blocks 2 CAN Bus board allows the E-Blocks system controller to connect with other controllers. The board can be used with E-Blocks controllers both with or without CAN bus peripherals and includes both a CAN transceiver and a CAN controller which can be accessed via a simple SPI bus. It is fitted with three switches and two LEDs which can be controlled using the CAN transceiver chip.
Flowcode macros for this E-Block are available.
If using this board with First Generation upstream E-Blocks, then you will need an E-Blocks upstream to E-Blocks 2 downstream connector.
