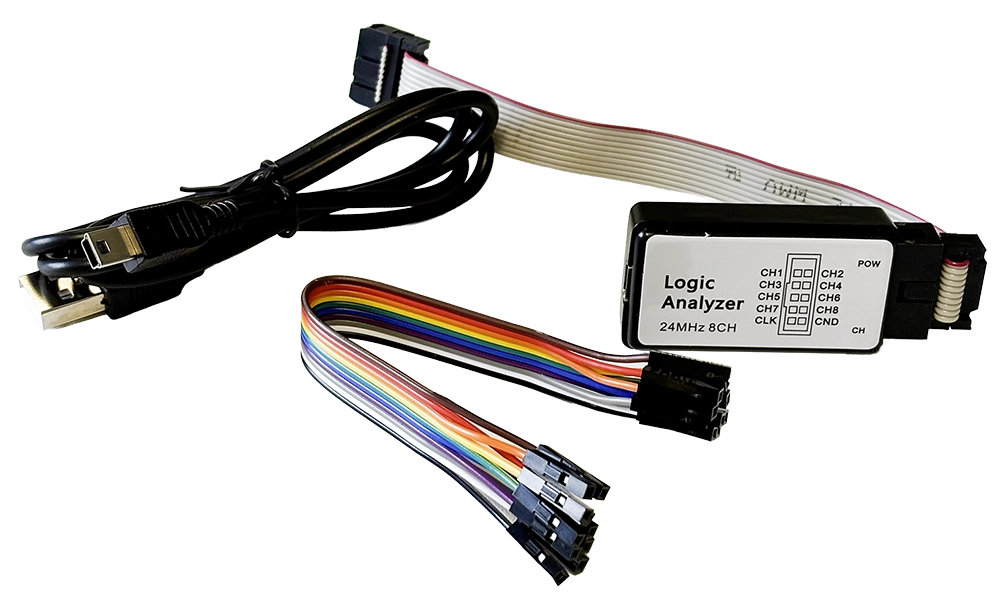

The upstream boards are fitted with headers by each of the port connectors to allow the easy integration of the logic analyser (BL0172). This allows the analyser to monitor the signals as they are fed through to a Downstream board. The logic analyser inputs are high impedance so that it should not affect the performance of the circuit.
EBlocks 3 Logic Analyser Board
SKU#: BL0172
Pictures are a representation of the product and correct at the time of uploading. Occasionally there may be changes to equipment for supplier or development reasons which may not be reflected. Please check the bill of materials before purchase to confirm the contents that you will receive.
£40.00 Ex VAT
